DIN935
Weifeng/Oem
Din935

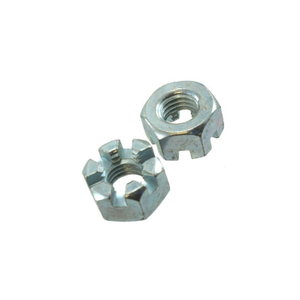

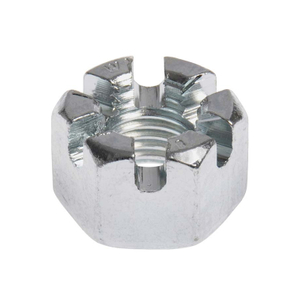

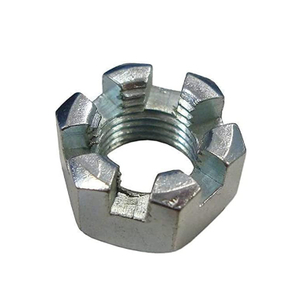

DIN 935 Hexagon Slotted Castle Nuts
Castle Nuts feature a castellated top, which allows them to be used in unison with a horizontal locking pin. The pin is inserted between the slots on the nut, through a hole in the screw, to create a locked anti-vibration fastening.
DIN 935 Castle Nuts are subjected to increased requirements for resistance to vibration or loads.
Available with Galvanized or zinc finish.
Improve Corrosion Resistance and Vibration Resistance.
Fully or Partially Threaded.
RoHS Compliant.
REACH Compliant.
Strength Class: 6.0
Slide the Pre-drilled threaded fastener through the installation material
Rotate the nut onto the fastener(slotted portion away from the installation material)
Apply the appropriate torque to the nut
If the bolt has no hole, once it is torqued properly drill a hole between two of the slots
Rotate the nut +/- 30% to align the hole with the slots in the nut
Slide the cotter pin through the slots, into the hole and out the other side
Using pliers, bend the cotter pin so that it cannot freely come out of the hole
Name: | DIN935 Hexagon Slotted and Castle Nut |
Available Raw Material : | Carbon Steel, Alloy Steel, Stainless Steel... |
Sizs : | As per Requirement |
Lead Time : | 30 Working Day for A 20' Container |
Thread: | Metric Thread or Inch Thread |
Standard Range: | DIN,ISO JIS, ANSI ,ASME,ASTM ... |
Surface Finish : | Black ,Color Zinc ,Dacromet, HDG, Zinc Nickel Cr3+ etc |
Package : | Bulk +Canton+Pallet, Small Boxes+Carton+Pallet, or Customer Request |
Payment Terms : | 100% T/T in Advance |
Certificate: | TS16949 PPAP LEVEL 3 , CO , FORM A ,FORM E |
Application: | Construction,Railway,Automotive,Industry, Furniture ,Machinery, Chemical Industry |
