Expansion Bolts Drywall Anchor Hollow Wall Anchors Plugs for Wall Fixings Metal Heavy Expansion Bolt Plasterboard Anchor Kit M8 M6 M5 M4 Expansion Screws

Expansion Bolts Drywall Anchor Hollow Wall Anchors Plugs for Wall Fixings Metal Heavy Expansion Bolt Plasterboard Anchor Kit M8 M6 M5 M4 Expansion Screws

Expandable, hollow wall anchors — often known as molly bolts — are made up of a machine screw that's been threaded through a slotted metal sleeve. As you tighten the screw, the metal sleeve will expand outward and slowly reach out to collapse against the back of your wall.


Availability:



Inquire Add to Basket

Model:
hollow wall anchors
Brand:
Weifeng/Oem
Code:
hollow wall anchors

hollow wall anchor hollow wall expansion anchor steel hollow drive wall anchors expansion screw bolt heavy duty hollow wall anchor hollow wall anchor m8 stainless steel hollow wall anchors molly - hollow wall anchor with pan head screws

Product Description

Product Name

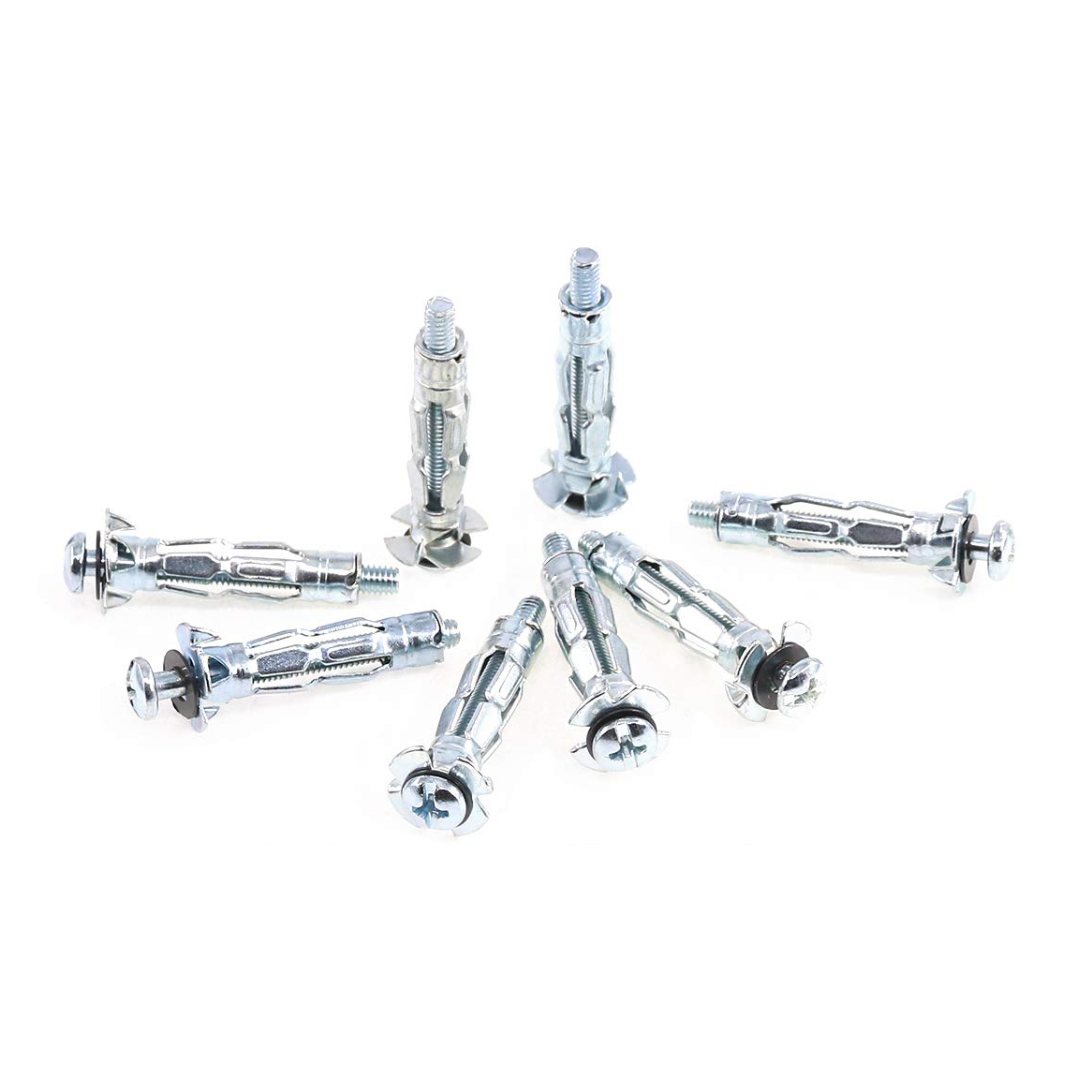

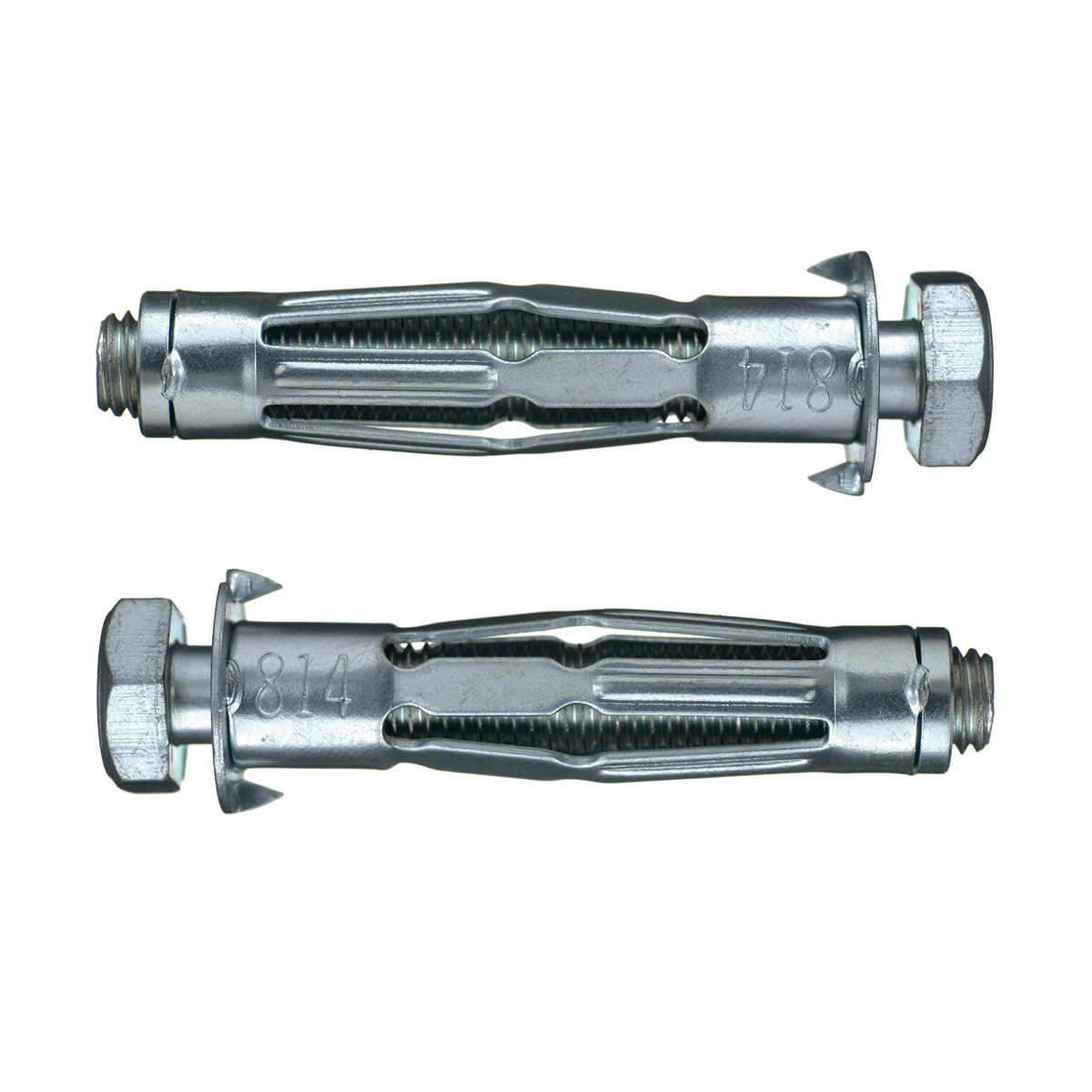

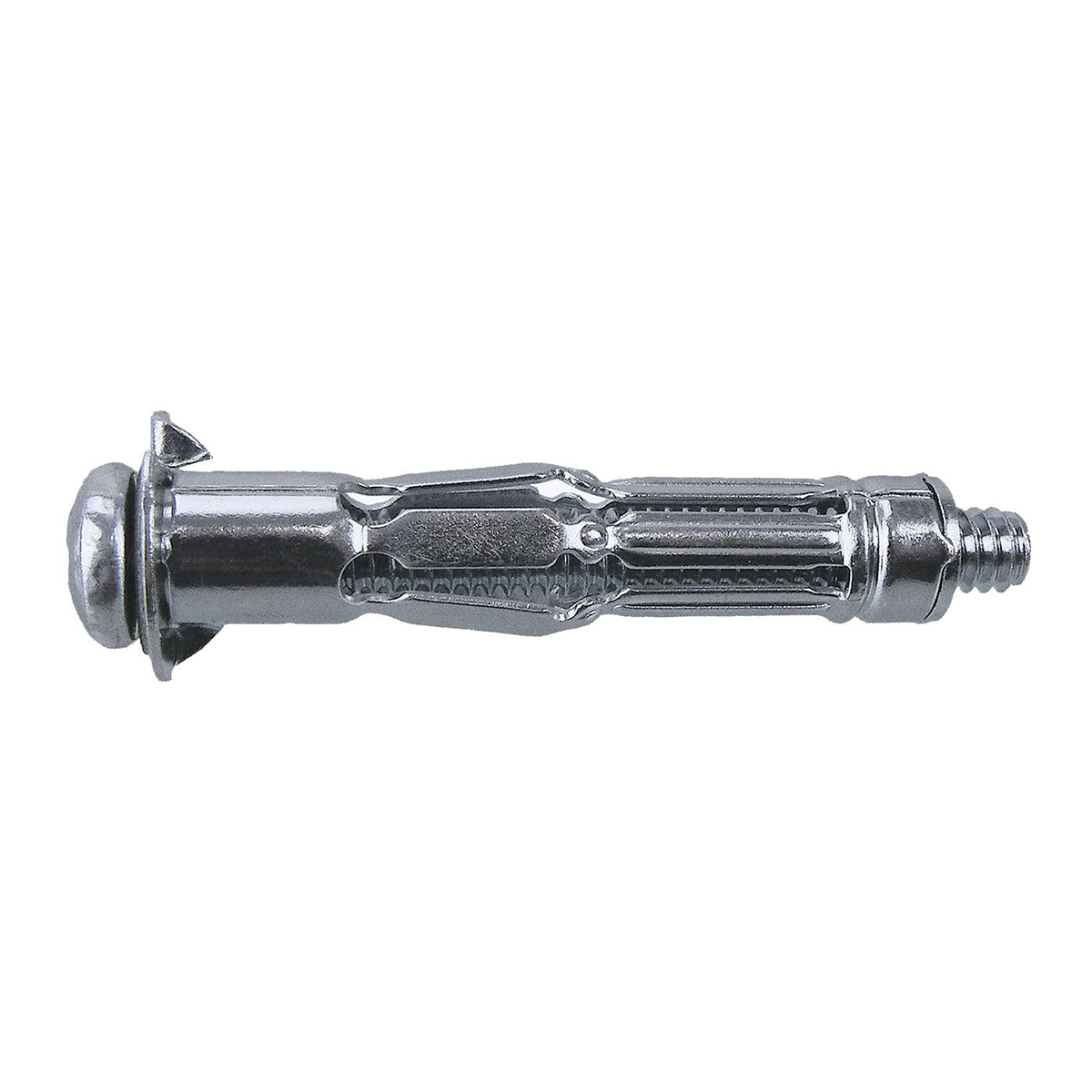

Hollow Wall Anchor Combo Phillips/Slotted Pan Head

Details Information

Introduction

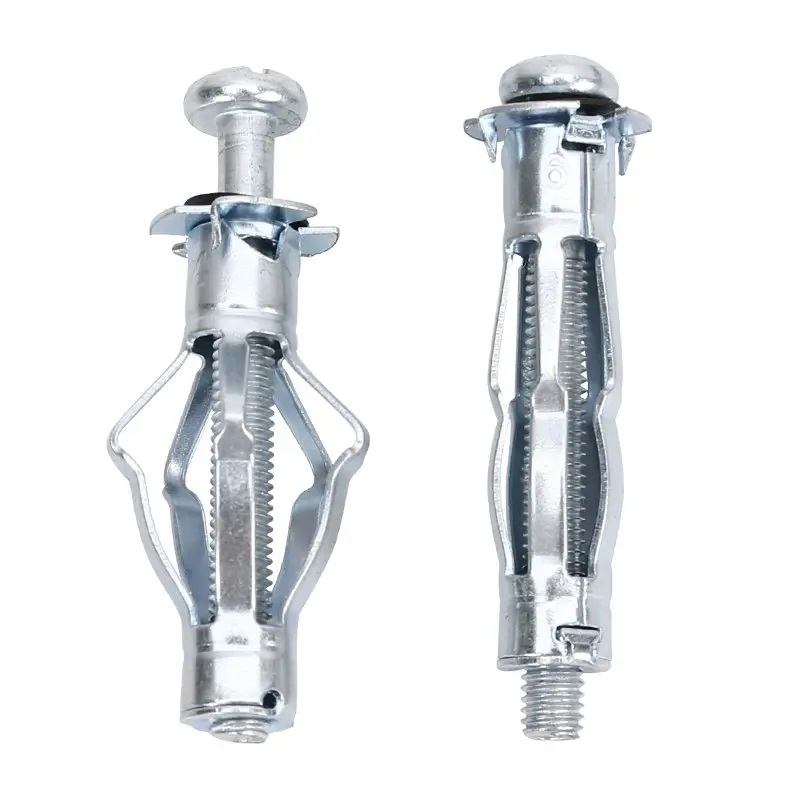

Better known as molly bolts, expandable metal anchors consist of a machine screw that's threaded into a slotted metal sleeve. When the screw is tightened, the metal sleeve expands outward and then collapses tightly against the back of the wall, securely holding the anchor in place.

Features

Calling it a hollow wall anchor emphasizes the feature of the anchor plug, specifically that it expands in the wallboard cavity to give a strong and secure fastening, anchoring it to the wall. Hollow wall anchors are most used on plasterboards and are made of metal, as opposed to simple wall plugs made of plastic.

Applications

The “Molly” bolt hollow wall anchor is designed for fastening building materials to substrates with a low load-bearing capacity, such as gypsum boards, chipboard or hollow brick. Also used when frequent dismantling of the structure is required.

Parameters

Item No.	Size	Total Length	Maximum drywall thickness	Anchor outer diameter and drilling diameter	Bag	Carton
		mm	mm	mm	pcs	pcs
24001	M4X20	20^±2	3	8	200	200
24002	M4X30	30^±3	6	8	200	200
24003	M4X40	40^±4	12	8	200	200
24004	M4X55	55^±5	24	8	200	200
24005	M4X65	65^±5	38	8	100	100
24006	M5X35	35^±3	12	10	100	100
24007	M5X55	55^±5	12	10	100	100
24008	M5X65	65^±5	24	10	100	100
24009	M6X35	35^±3	12	12	100	100
24010	M6X55	55^±5	12	12	100	100
24011	M6X65	65^±5	24	12	100	100
24012	M6X80	80^±5	45	12	100	100
