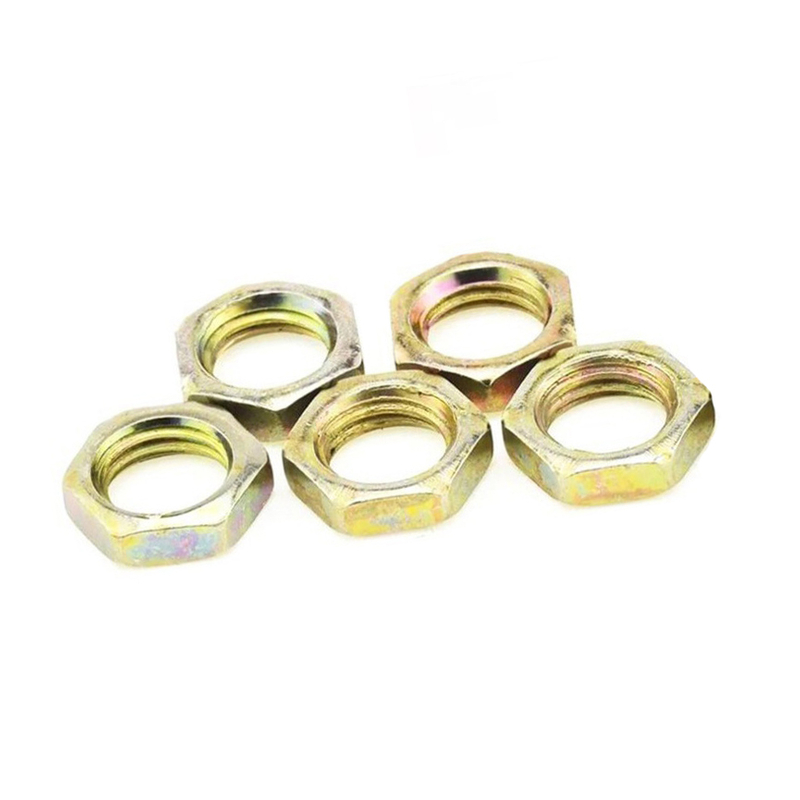

Yellow Zinc Plated DIN 936 Hex Thin Nut
Details Information
Introduction
Hex thin nut is a type of nut characterized by its reduced height or thickness compared to a standard hex nut，which allows for applications with limited vertical space or where a lower profile nut is desired.
Features
Equivalent standard: ISO4035, UNI 5589
Material: Carbon Steel
Type: Hex Thin Nuts
Markings: 14H,17H,22H
Threading: 6H
Thread Size: M8 ~ M52
Surface Finish: Plain, Black, Zinc Plated, Yellow Plated, H.D.G, Self Color
Class: Grade 4, Grade 5, Grade 6
Applications
Metric Thin Hexagon Nuts are intended to fasten screws and bolts when used in conjunction with unthreaded holes. This component features a reduced height for space conservation purposes, which makes it ideal for light to medium duty fastening. More robust components such as the standard Hexagon Nuts range can offer greater thread engagement, and are more suitable for heavy-duty applications.
Parameters
| Mechnical Peroperty | Material | Surface Treatment |
| Class6/ Class 8 | C45 | ♦Plain+oil
♦Zinc Plated
♦Black Oxide
♦Phosphate
♦Dacromet
♦Geomet |
| Class 10 | 40Cr /42CrMo |
| Class 12 | 35CrMo |
Thread size
d | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 |
| Pitch | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 |
| 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| 7.5 | - | - | - | 2 | 2 | 2 | 2 |
| - | - | - | - | - | - | - | - |
| da | 12-13 | 14-15.1 | 16-17.3 | 18-19.5 | 20-21.6 | 22-23.7 | 24-25.9 | 27-29.1 |
| dw min | 17.2 | 20.2 | 22.2 | 25.3 | 28.2 | 29.5 | 33.2 | 38 |
| e min | 21.1 | 24.49 | 26.75 | 29.56 | 32.95 | 35.03 | 39.55 | 45.2 |
| m | 7-6.64 | 8-7.42 | 8-7.42 | 9-8.42 | 9-8.42 | 10-9.1 | 10-9.1 | 12-10.9 |
| mw min | 5.3 | 5.9 | 5.9 | 6.7 | 6.7 | 7.3 | 7.3 | 8.7 |
| s | 19-18.67 | 22-21.67 | 24-23.67 | 27-26.16 | 30-29.16 | 32-31 | 36-35 | 41-40 |
Thread size
d | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
| Pitch | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 |
| 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| - | - | 3 | 3 | 3 | 3 | 3 | 3 |
| da | 30-32.4 | 33-35.6 | 36-38.9 | 39-42.1 | 42-45.4 | 45-48.6 | 48-51.8 | 52-56.2 |
| dw min | 42.7 | 46.6 | 51.1 | 55.9 | 60.6 | 64.7 | 69.4 | 74.2 |
| e min | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 |
| m | 12-10.9 | 14-12.9 | 14-12.9 | 16-14.9 | 16-14.9 | 18-16.9 | 18-16.9 | 20-18.7 |
| mw min | 8.7 | 10.3 | 10.3 | 11.9 | 11.9 | 13.5 | 13.5 | 15 |
| s | 46-45 | 50-49 | 55-53.8 | 60-58.8 | 65-63.1 | 70-68.1 | 75-73.1 | 80-78.1 |
