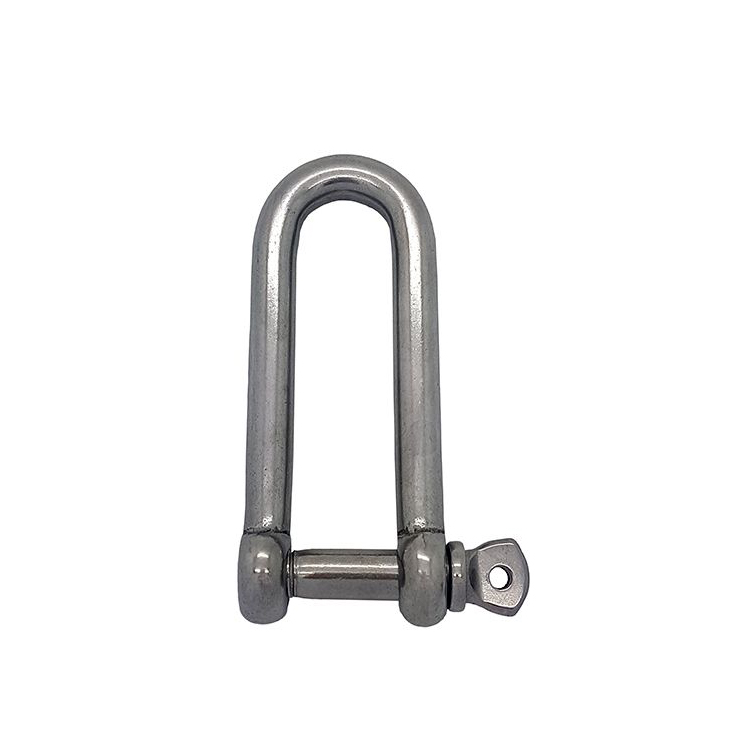

Stainless Steel Long "D" Shackles are made with high corrosion resistance stainless steel. These Stainless Steel Long "D" Shackles have a 5 to 1 WLL which rates our Long "D" Shackle's WLL at 20% of its Ultimate Breaking Strength. The WLL is the maximum load that should ever be applied and is based on an in-line pull with no shockload. A competent person should make an assessment of the conditions of use to determine the maximum load allowed. Our Stainless Steel Long "D" Shackle has a screw pin which allows the pin to be removed from the body of the D Shackle.
Part # | A
(in) | B
(in) | C
(in) | D
(in) | WLL
(lb) | Wt
(lb) |
WF532 | 5/32 | 0.15 | 0.32 | 1.19 | 200 | 0.03 |
WF316 | 3/16 | 0.19 | 0.43 | 1.50 | 500 | 0.05 |
WF14 | 1/4 | 0.23 | 0.49 | 1.74 | 750 | 0.08 |
WF516 | 5/16 | 0.31 | 0.68 | 2.31 | 1,000 | 0.18 |
WF38 | 3/8 | 0.38 | 0.78 | 2.88 | 1,200 | 0.35 |
WF12 | 1/2 | 0.47 | 0.93 | 3.50 | 1,500 | 0.62 |
