Product Name

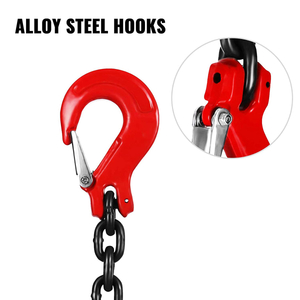

Three Legs Lifting Chain Sling
Details Information
Introduction
3 Leg Chain Sling is a type of chain sling that consists of 3 legs. These 3 legs are attached to a lifting device, such as a crane, and are used to lift heavy loads. 3 Leg Chain Slings are commonly used in industries such as construction, manufacturing, and shipping.
Features
Chain slings have the distinct advantage of durability and flexibility. They can come in different lengths that are adjustable with extra links. When compared to other sling material, chain slings provide the best protection against sharp edges and other wear and tear. It is the most resilient type of sling and can be easily repaired by a qualified professional. Chain slings are ideal for tough environments such as steel mills, foundries, and machine shops.
Applications
They are often used for lifting heavy items on work sites such as skip bins, concrete slabs, pipes, materials, pre-fabricated structures and so much more. Chain slings are made up of lengths of high tensile chain, with a variety of fittings attached.
Parameters
Model Angle | 3-leg (t) | Chain（kg/m） |
0~45° | ＞ 45~60° |
2.1 | 1.5 |
φ6mm | 2.35 | 1.68 | 0.80 |
φ8mm | 4.20 | 3.00 | 1.40 |
φ10mm | 6.62 | 4.73 | 2.20 |
φ13mm | 11.13 | 7.95 | 3.80 |
φ16mm | 16.80 | 12.00 | 5.70 |
φ18mm | 21.00 | 15.00 | 7.30 |
φ20mm | 26.25 | 18.75 | 9.00 |
φ22mm | 31.50 | 22.50 | 10.90 |
φ26mm | 44.52 | 31.80 | 15.20 |
φ32mm | 66.15 | 47.25 | 23.00 |
